TEM Gas Plasma Sample Holder

Operando heating, biasing under environmental conditions

Operando Gas Plasma TEM Experiments

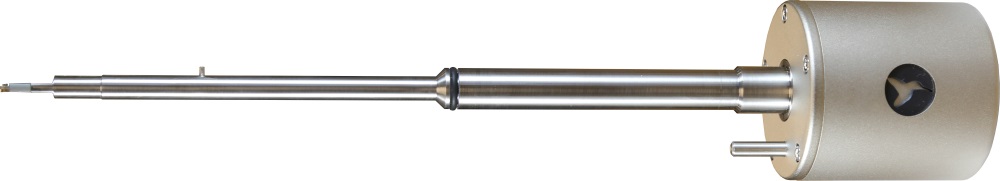

The TEM Gas Plasma Sample Holder enables in situ and operando observation of plasma–material interactions inside a transmission electron microscope. The holder supports controlled gas plasma experiments for researchers studying catalyst behavior, nanoparticle reactions, thin-film processes, surface modification, semiconductor materials, and plasma-assisted materials transformations.

‍

Controlled Plasma, Gas, and Heating at the Sample

The system uses a plasma/gas cell architecture with cathode and anode chips, spacers, controlled gas delivery, purge capability, top-to-bottom plasma geometry, plasma voltage above 1 kV, and heating above 1000 °C. This allows researchers to study plasma-driven reactions under defined environmental and thermal conditions.

‍

Workflow Integration for Analytical TEM

The holder is designed for Thermo Fisher Scientific and JEOL TEM platforms and supports EELS/EDS-compatible workflows. Hummingbird connects holder design, sample chips, gas control, TEM safety preparation, and direct engineering support for specialized plasma TEM experiments.

Technical Specs

1300 Series – Plasma/Gas

Pressure Range at Sample

1 to 2 bar

Experimental Gas Inlets

Purge Capability

Yes

Plasma Geometry

Top-to-bottom plasma

Plasma Voltage Range

>1 kV

Biasing Contacts

4 contacts

Heating Temperature

>1000 °C

Holder Cleaning

Bakeable to 160 °C

Analytical Compatibility

EELS / EDS compatible

Instrument Type

TEM

Available For:

Key Features and Capabilities

Specialized Gas Cell Chips

Configure gas plasma experiments with specialized chips matched to the holder and workflow.

Analytical TEM compatibility for plasma reaction workflows

Support imaging and analytical TEM workflows with listed EELS and EDS compatibility.

TEM safety workflow for environmental cell preparation

Check environmental cell seals before TEM insertion to help protect microscope vacuum quality.

Heating and gas delivery control for plasma experiments

Combine gas plasma exposure with heating and controlled gas delivery during TEM experiments.

Cathode and anode chip architecture for plasma generation

Use specialized cathode and anode chips to generate plasma near the imaging region.

Controlled gas plasma environment for operando TEM studies

Generate plasma in a controlled gas environment while observing plasma–material reactions in TEM.

›
